Hi all,
Just wondering if anyone has any pics of the double pulley & bracket for air con ?
Also im guessing they'll be extremely rare to get too
Cheers
Craig
A/C Double pulley & bracket
- Arctic Alto
- Posts: 211
- Joined: Wed Dec 26, 2007 5:54 pm
- Location: Melbourne, Victoria
- Contact:
- Arctic Alto
- Posts: 211
- Joined: Wed Dec 26, 2007 5:54 pm
- Location: Melbourne, Victoria
- Contact:
Just thought.
Are there any other pulleys that are the same dimensions as the F8b use. just in a double ?
There has got to be other cars that use something the same
Are there any other pulleys that are the same dimensions as the F8b use. just in a double ?
There has got to be other cars that use something the same
- Arctic Alto
- Posts: 211
- Joined: Wed Dec 26, 2007 5:54 pm
- Location: Melbourne, Victoria
- Contact:
Another thought,
Is it possible to put 2 of the same crank pulleys side by side ?
Is it possible to put 2 of the same crank pulleys side by side ?
The crankshaft isn't long enough to fit two pulleys. Unless you can find a double pulley the only other option would be to have one billet machined. If I was going to that kind of trouble I'd do a gilmer drive setup instead.
F8B EFI turbo - Three pots and a snail.
- Arctic Alto
- Posts: 211
- Joined: Wed Dec 26, 2007 5:54 pm
- Location: Melbourne, Victoria
- Contact:
Thanks for replies guys.
I'm not sure on the dimensions of the dual pulley.
Only know its 113mm round.
Anyone know of all the dimensions/specs of the dual pulley ?
I'm not sure on the dimensions of the dual pulley.
Only know its 113mm round.
Anyone know of all the dimensions/specs of the dual pulley ?
-
- Posts: 14
- Joined: Fri Feb 21, 2014 4:56 pm
- Location: 'Dilly, New South Wales
Hi Craig.
I've refrained from commenting thus far, because I'm only speaking from distant memory, but in years gone by (prior 2000!), where I work used to make belt-driven extraction fans, and at the time I was quite conversant with pullies, belts etc. So here goes...

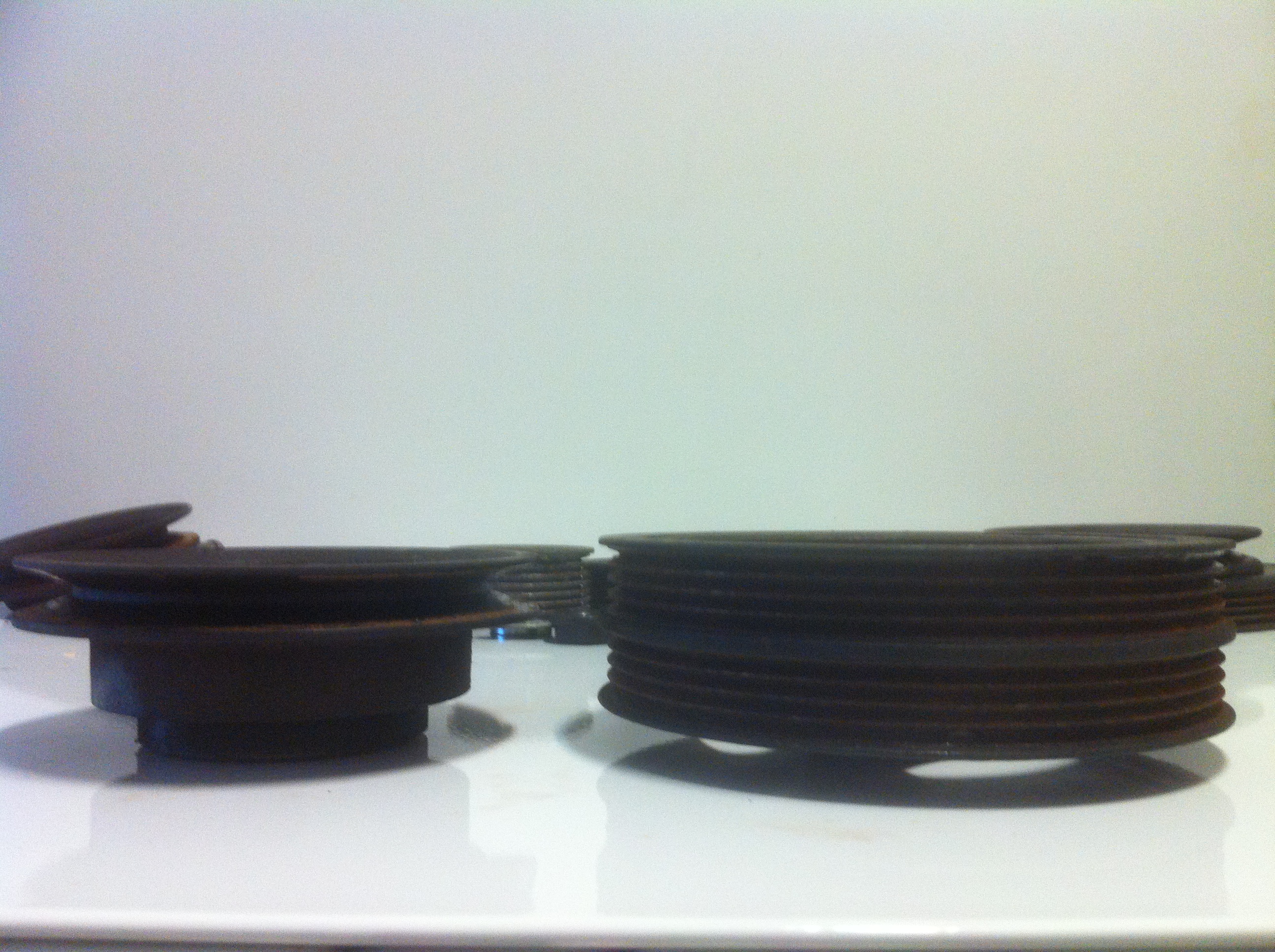

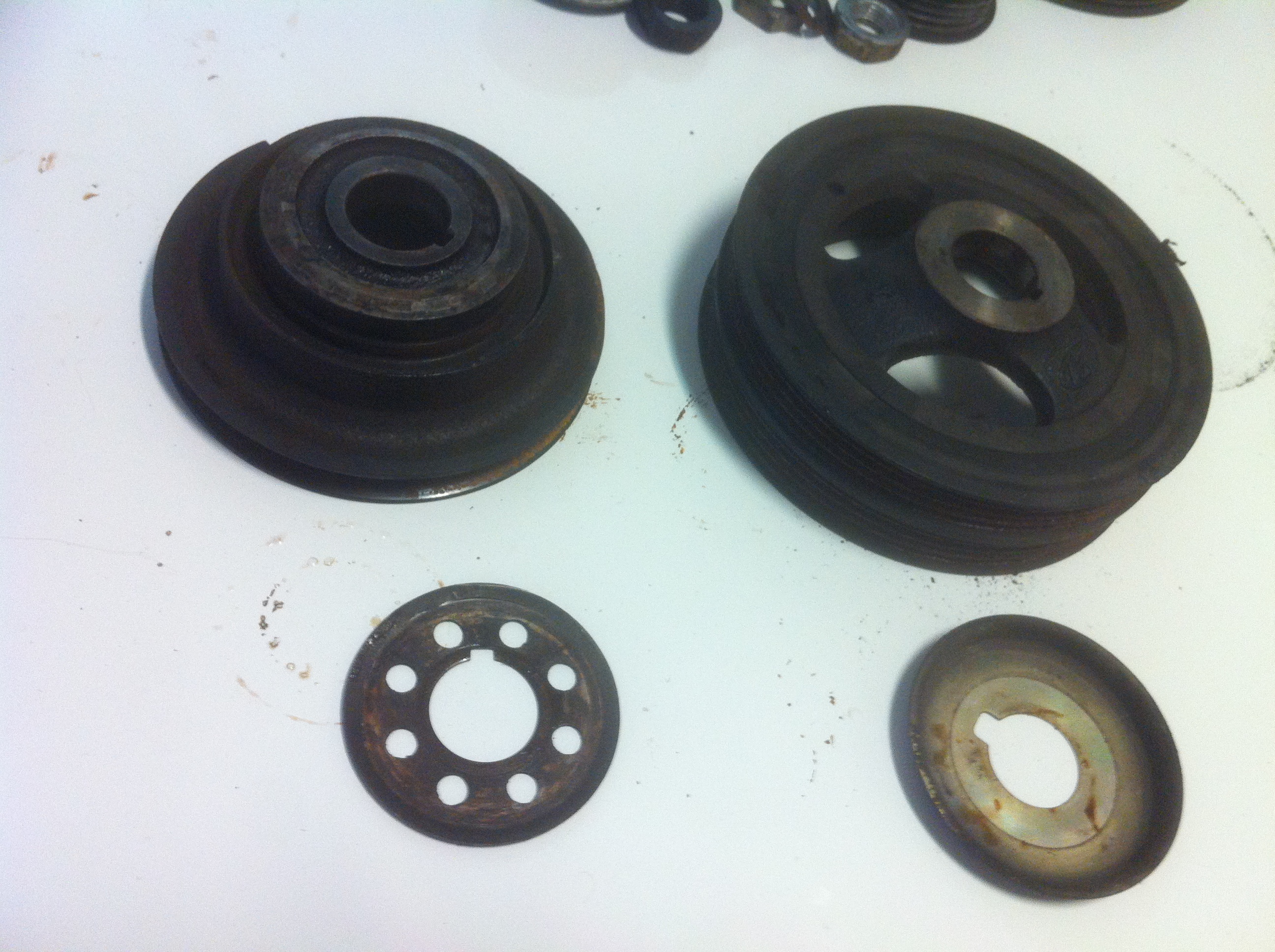

From Will's pictures, the pulley appears to be an 'spz' cross-section (as opposed to an 'spa' cross-section).
I know that we used to stock all manner of sizes of single, and dual row pullies in sizes from 56mm diameter up to as big as you like - I suspect you can go even smaller, but we had no need for smaller, so we didn't stock them.
I would suggest if you were to trot into your local Bearing Wholesalers, or CBC Bearings outlet, and show them an example of what you have, and explain what you want, you might find an industrial pulley 'off the shelf' that is close enough to serve your needs.
Failing that, you'll be able to lean on their experience to get a much better understanding of precisely what it is you want. Then I'd take Milton up on his offer to make it up for you.
I've refrained from commenting thus far, because I'm only speaking from distant memory, but in years gone by (prior 2000!), where I work used to make belt-driven extraction fans, and at the time I was quite conversant with pullies, belts etc. So here goes...
From Will's pictures, the pulley appears to be an 'spz' cross-section (as opposed to an 'spa' cross-section).
I know that we used to stock all manner of sizes of single, and dual row pullies in sizes from 56mm diameter up to as big as you like - I suspect you can go even smaller, but we had no need for smaller, so we didn't stock them.
I would suggest if you were to trot into your local Bearing Wholesalers, or CBC Bearings outlet, and show them an example of what you have, and explain what you want, you might find an industrial pulley 'off the shelf' that is close enough to serve your needs.
Failing that, you'll be able to lean on their experience to get a much better understanding of precisely what it is you want. Then I'd take Milton up on his offer to make it up for you.
Tez
So the adventure continues...
So the adventure continues...
- Arctic Alto
- Posts: 211
- Joined: Wed Dec 26, 2007 5:54 pm
- Location: Melbourne, Victoria
- Contact:
Thanks Tez,
I work for a diesel & earthmoving parts company and CBC are a supplier of ours
Will look into to it.
I work for a diesel & earthmoving parts company and CBC are a supplier of ours
Will look into to it.
- Goofy[HSK]
- Posts: 630
- Joined: Tue Nov 15, 2005 9:33 pm
- Location: South Australia
- Contact:
both my F6A and F5B's have double pulleys
'89 Alto Works RS/R - Awaiting: Paint, Windscreen, Compliance, Lottery
'89 Alto Works RS/R - Complied, Registrable, Awaiting Paint, Engine not running
www.hillsidekonnection.com
'89 Alto Works RS/R - Complied, Registrable, Awaiting Paint, Engine not running
www.hillsidekonnection.com
- Goofy[HSK]
- Posts: 630
- Joined: Tue Nov 15, 2005 9:33 pm
- Location: South Australia
- Contact:
SB308 had F8B?
If so,
http://suzuki-cat.ru/?&action=detail&re ... r=1&page=7
12611-84090 - PULLEY, CRANKSHAFT W/AIR CON RHD
http://suzuki-cat.ru/?&action=detail&re ... FSUZUKI%29
Brackets in this one
If so,
http://suzuki-cat.ru/?&action=detail&re ... r=1&page=7
12611-84090 - PULLEY, CRANKSHAFT W/AIR CON RHD
http://suzuki-cat.ru/?&action=detail&re ... FSUZUKI%29
Brackets in this one
'89 Alto Works RS/R - Awaiting: Paint, Windscreen, Compliance, Lottery
'89 Alto Works RS/R - Complied, Registrable, Awaiting Paint, Engine not running
www.hillsidekonnection.com
'89 Alto Works RS/R - Complied, Registrable, Awaiting Paint, Engine not running
www.hillsidekonnection.com
Thay are around as I got givin an Alto that has an F8B and factory Air, now going into the MB just had to cut some of the A/C box away line it up with the intake for the underdash ventilation add a piece of high density foam to join the two and taadaa Cool runnings for the MB. Is the plan anywhay. I havnt had a look at the twin pully yet but it dosent look any thing special.
